Yolin YL-81F-H Ebike Display
Yolin YL-81F-H Ebike Display

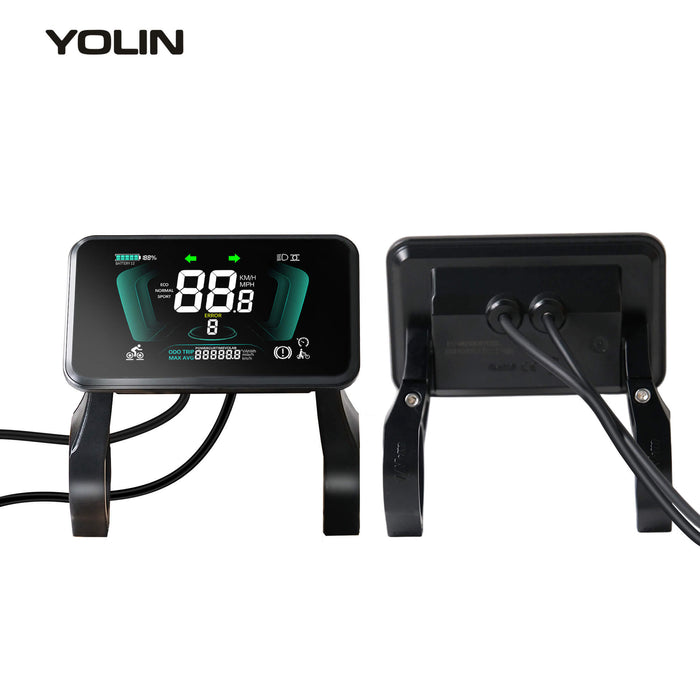

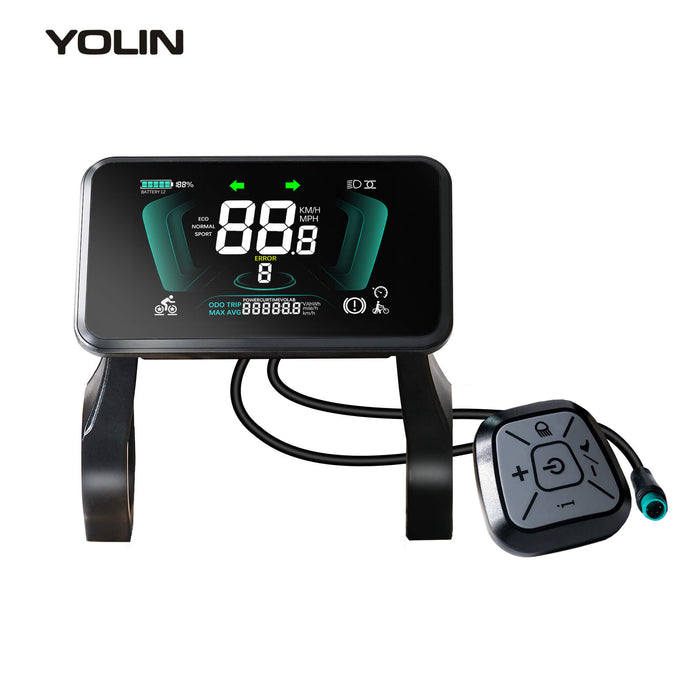

The Yolin YL-81F-H features a landscape screen layout with optional advanced system indicators for dual-drive and dual-battery configurations.
Horizontal Layout for Integrated Cockpit Design
Unlike vertical-format displays such as the YL-80C, YL-81F, and YL-91F, the YL-81F-H uses a horizontal screen structure that aligns naturally with wider handlebar layouts and modern integrated dashboards.

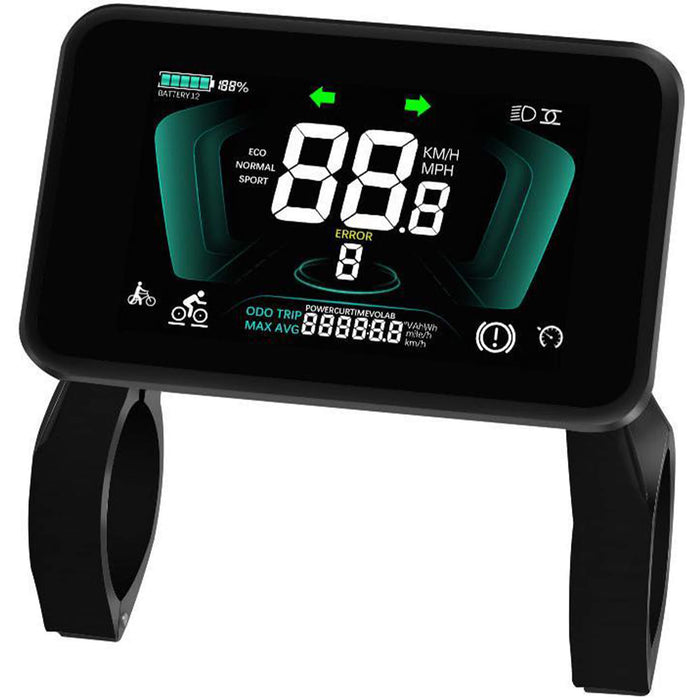

- Landscape real-time speed display (mph/kmh system dependent)
- Multi-level PAS indication
- Battery level and voltage monitoring
- Integrated system error diagnostics
- Clear horizontal information segmentation
- Bluetooth & App connectivity (depends on system configuration)
Optional Advanced System Indicators
The YL-81F-H supports configurable features depending on system setup:
- Dual motor (dual-drive) indicator
- Dual battery status indication
- Turn signal display integration
- NFC card-based power activation
Optional features such as dual battery or NFC activation require compatible controller support.
The connector shown in the product images is the standard version. We offer various wiring harness options to ensure compatibility with your specific eBike model and electrical system. If you require a different connector, please contact our customer service team after placing your order.
Technical Specifications
| Model | Yolin YL-81F-H |
|---|---|
| Screen Orientation | Horizontal (Landscape) |
| Communication Type | UART / CAN |
| Operating Voltage | 36V / 48V / 52V |
| Protocol Compatibility | Standard P1/P2 / 5S / LKLS / Custom |

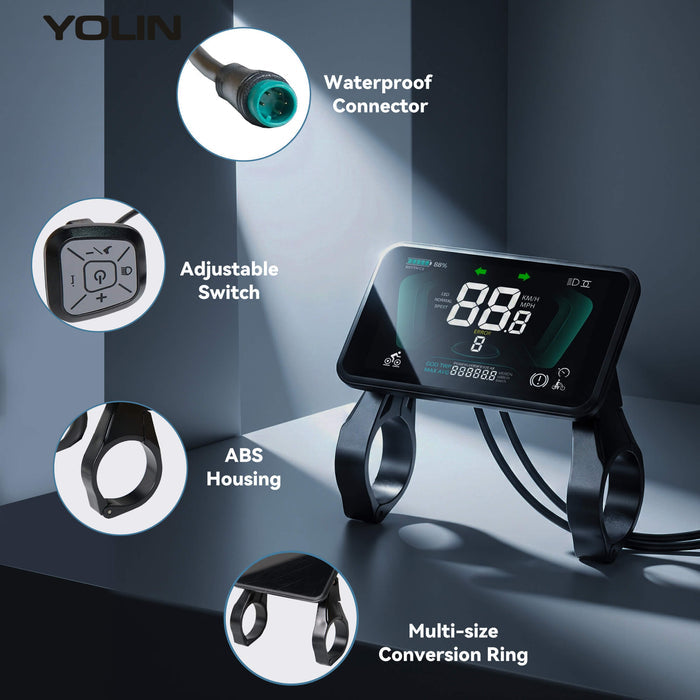

| Connector Type | 5-pin waterproof round / SM / Custom |

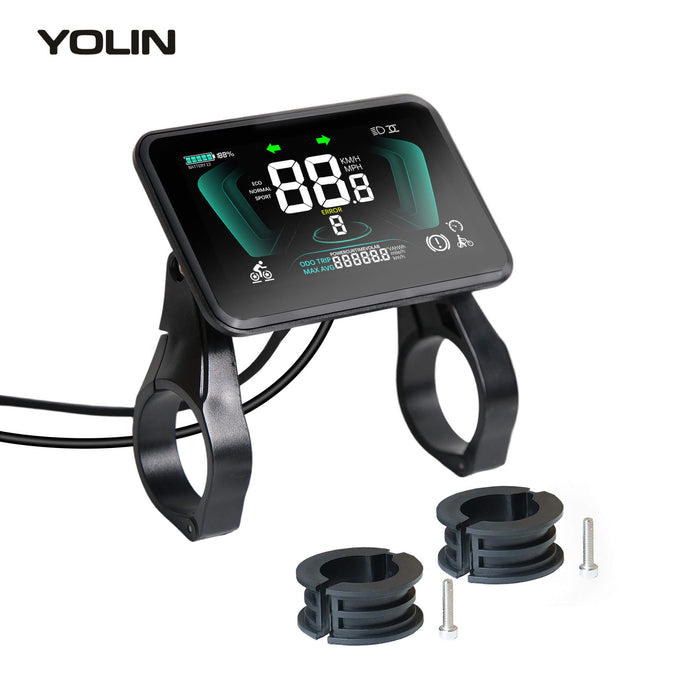

| Mount Compatibility | 22.2 mm / 25.4 mm / 31.8 mm |

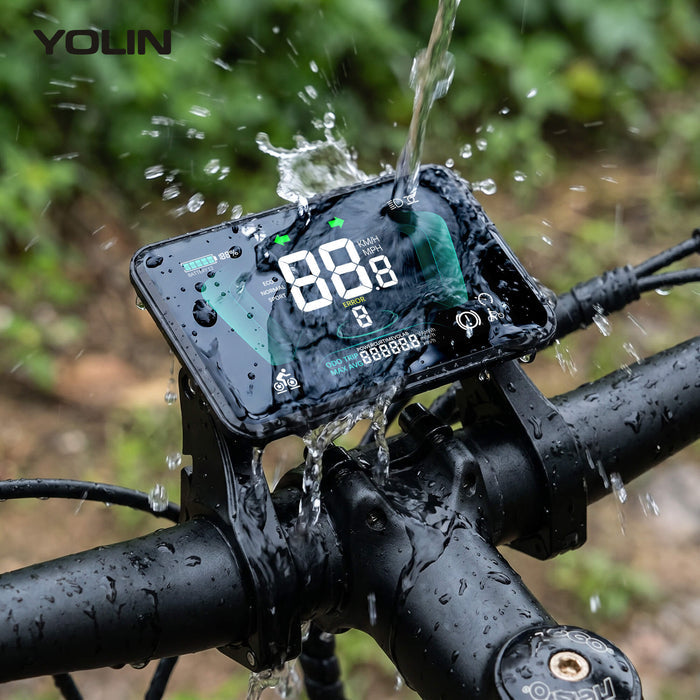

| Water Resistance | IP66 |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
