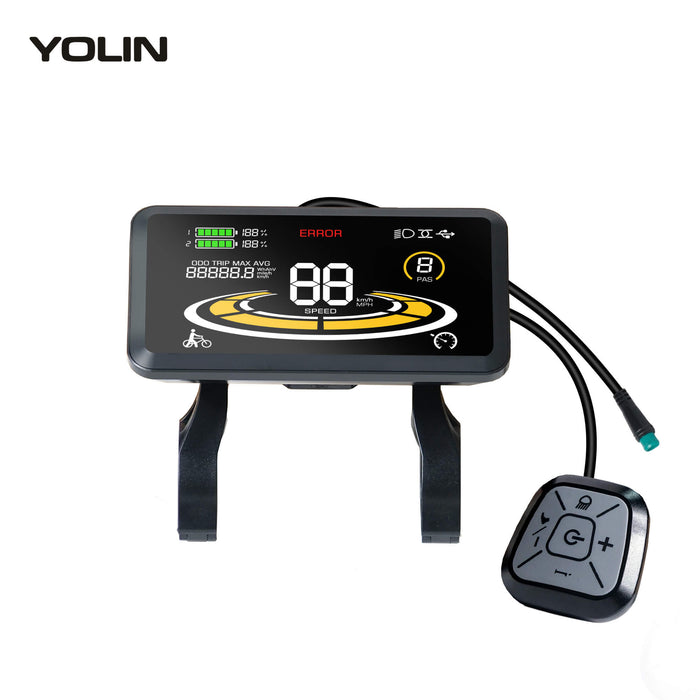

Yolin YL-91F-H 4 inch LCD e-bike display – horizontal large format display for integrated e-bike cockpit systems

Yolin YL-91F-H Ebike Display

$72.27
$72.27 $99.00
Skip to product information
Yolin YL-91F-H 4 inch LCD e-bike display – horizontal large format display for integrated e-bike cockpit systems
  • Yolin YL-91F-H 4 inch LCD e-bike display – horizontal large format display for integrated e-bike cockpit systems

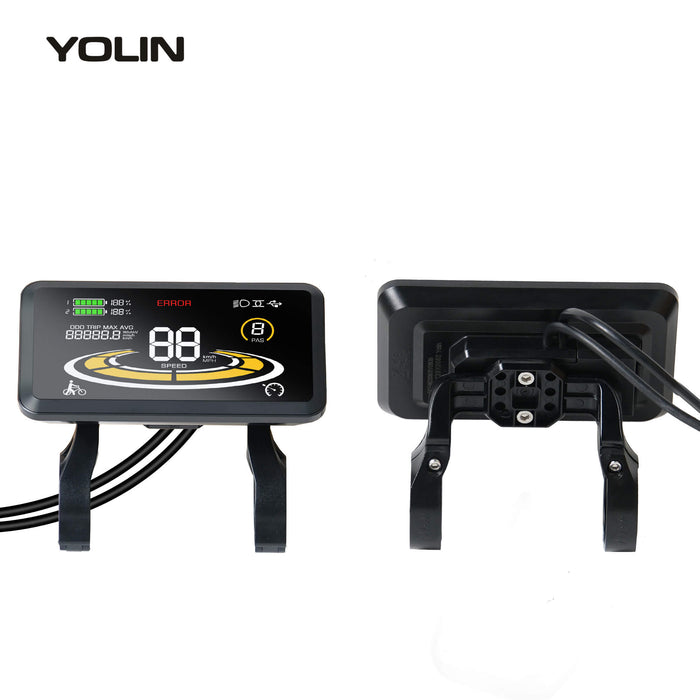

  • Yolin_YL-91F-H_4_inch_LCD_e-bike_display_front_and_back

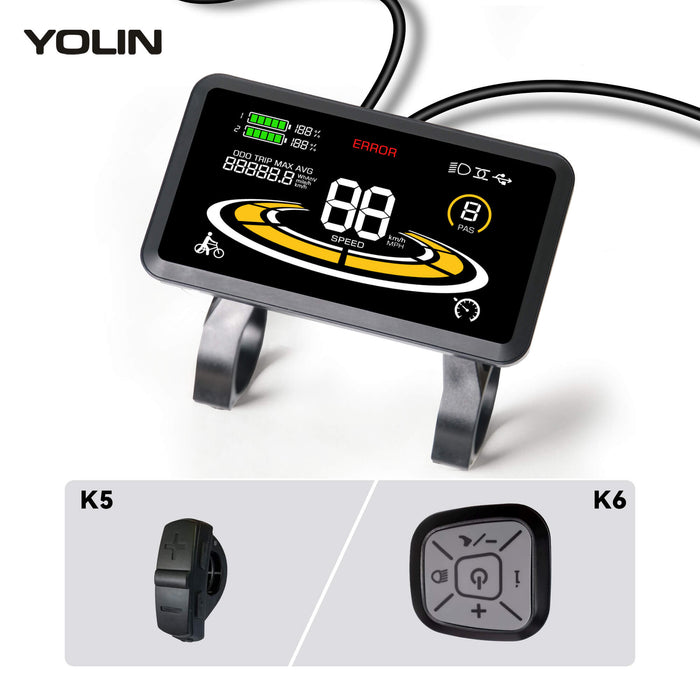

  • Yolin_YL-91F-H_4_inch_LCD_e-bike_display_with_keypads

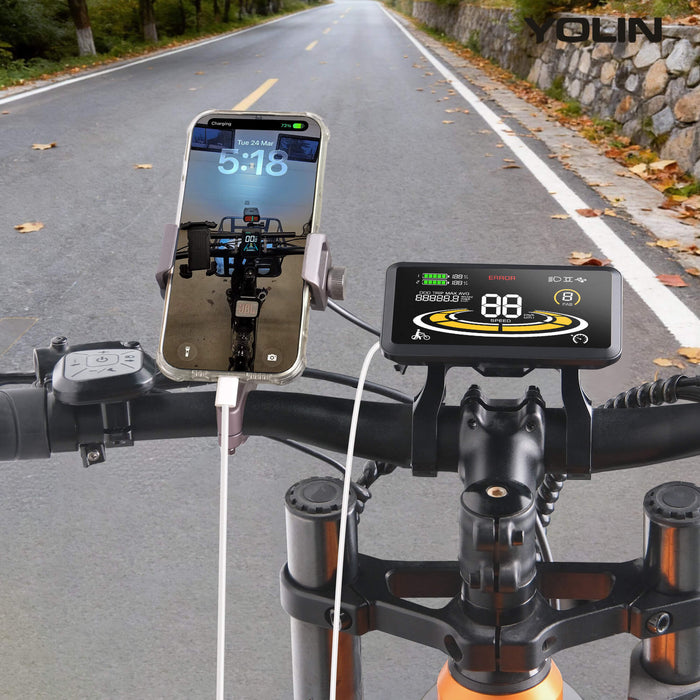

  • Yolin_YL-91F-H_4_inch_LCD_e-bike_display_USB_Charging
  • Yolin YL-91F-H 4 inch LCD e-bike display – horizontal large format display for integrated e-bike cockpit systems
  • Yolin YL-91F-H 4 inch LCD e-bike display – horizontal large format display for integrated e-bike cockpit systems
  • Yolin YL-91F-H Ebike Display
  • Yolin YL-91F-H 4 inch LCD e-bike display – horizontal large format display for integrated e-bike cockpit systems
  • Yolin_YL-91F-H_4_inch_LCD_e-bike_display_front_and_back
  • Yolin_YL-91F-H_4_inch_LCD_e-bike_display_with_keypads
  • Yolin_YL-91F-H_4_inch_LCD_e-bike_display_USB_Charging
  • Yolin YL-91F-H 4 inch LCD e-bike display – horizontal large format display for integrated e-bike cockpit systems
  • Yolin YL-91F-H 4 inch LCD e-bike display – horizontal large format display for integrated e-bike cockpit systems
  • Yolin YL-91F-H Ebike Display
Yolin YL-91F-H Ebike Display

Yolin YL-91F-H Ebike Display

$72.27
$72.27 $99.00

The Yolin YL-91F-H offers the same large-format 4-inch display platform as the YL-91F-V but in a horizontal orientation. This layout is designed for integrated cockpit systems and wide handlebar configurations.

Wide-Screen Landscape Layout

Unlike vertical models in the Yolin lineup, the YL-91F-H adopts a horizontal screen orientation that aligns naturally with integrated cockpit designs and wide handlebar configurations. The layout allows clearer separation of riding data and system indicators.

  • Wide-format real-time speed display (mph/kmh system dependent)
  • Multi-level PAS indication
  • Battery level and voltage monitoring
  • Integrated error code diagnostics
  • Segmented data zones for improved readability
  • Bluetooth & App connectivity (depends on system configuration)

The connector shown in the product images is the standard version. We offer various wiring harness options to ensure compatibility with your specific eBike model and electrical system. If you require a different connector, please contact our customer service team after placing your order.

Technical Specifications

Model Yolin YL-91F-H
Screen Orientation Horizontal (Landscape)
Screen Size Large-format LCD
Communication Type UART / CAN
Operating Voltage 36V / 48V / 52V
Protocol Compatibility Standard P1/P2 / 5S / LKLS / Custom

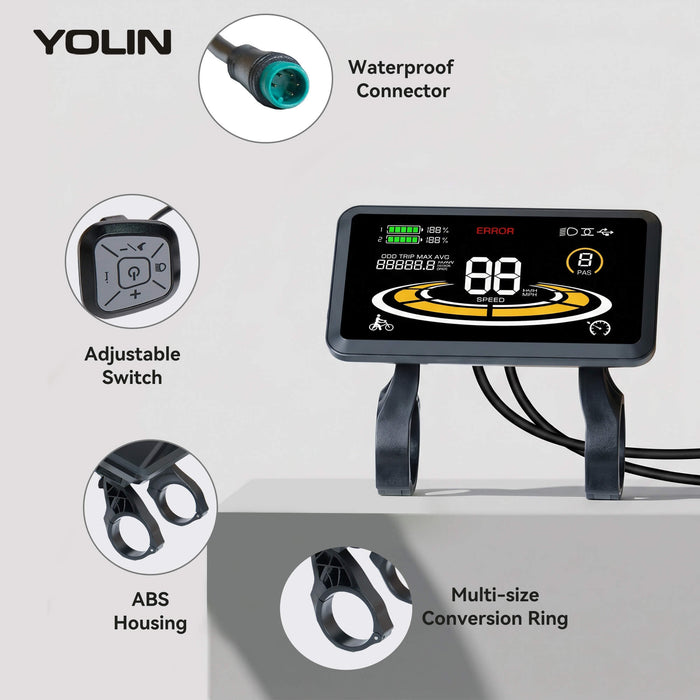

Connector Type 5-pin waterproof round / SM / Custom

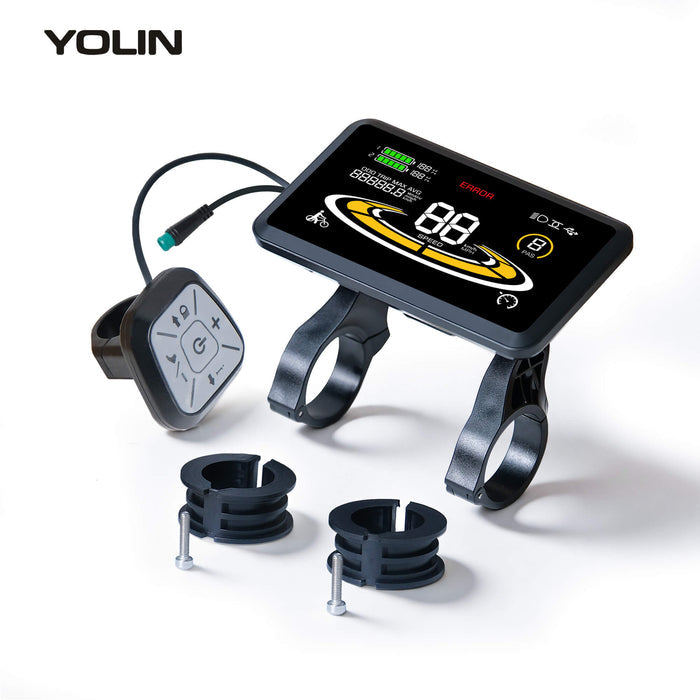

Mount Compatibility 22.2 mm / 25.4 mm / 31.8 mm options

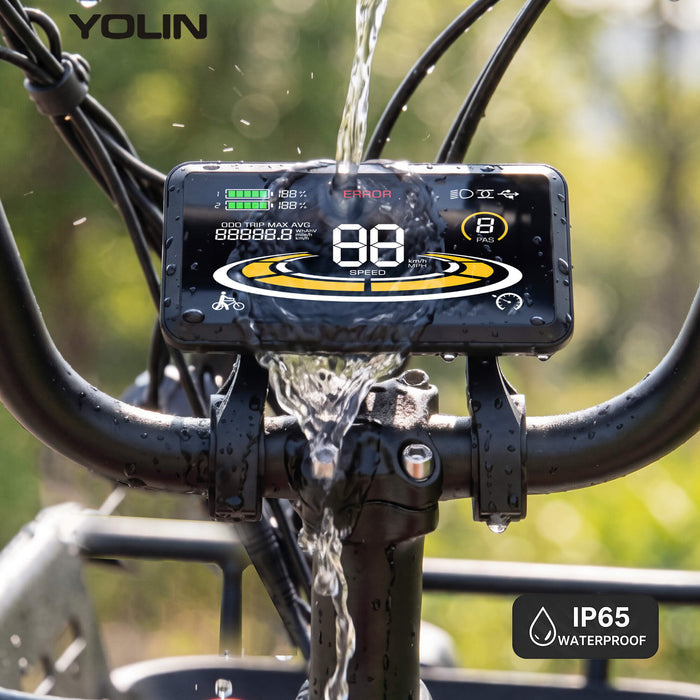

Water Resistance IP65
Operating Temperature -4°F to 140°F (-20°C to 60°C)
